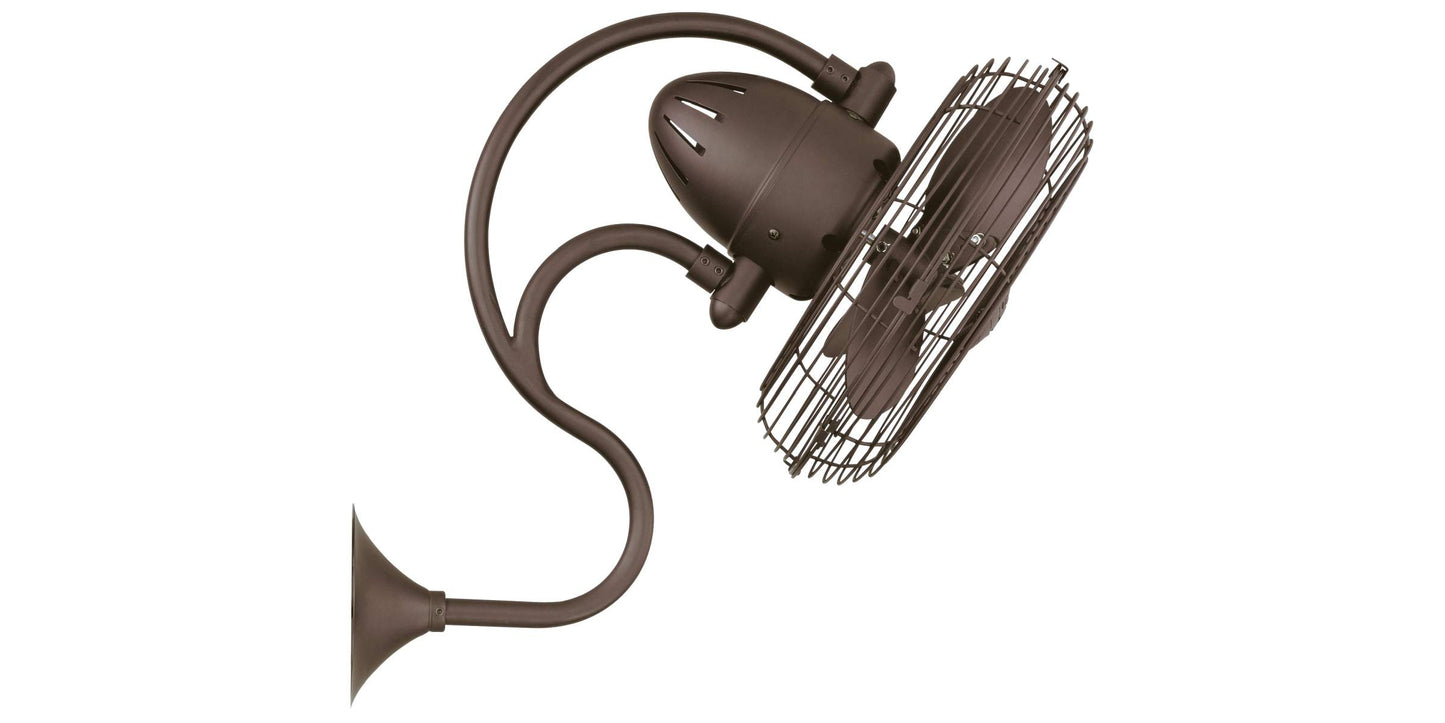

Atlas Melody 13" Ceiling Fan in Textured Bronze with Textured Bronze Blades

Description

MPN: ME-TB

Atlas Melody 3-speed oscillating wall-mounted Art Nouveau style fan in textured bronze finish. The oscillating Melody, 3–speed wall-mounted fan, designed in the Art Nouveau style with a grand, arching gooseneck, provides maximum multi-directional airflow with its 90 degree left to right sweep. Melody can be mounted in small, awkward spaces or in front of HVAC ducts to improve the efficiency of the heating, ventilation or air conditioning of any space. Constructed of cast aluminum and heavy stamped steel, the Melody carries a limited lifetime warranty.

Performance

• Wind Speed Factor: 6.15 MPH
• RPM Low: 1213
• RPM High: 1495
• CFM Low: 868
• CFM High: 1302.65
• CFM/Watt High: 27.32
• Watts High: 47.68
• Amps High: 0.5
• Speeds: 3-Speed
• Motor Type: AC Motor

Product Features

• Feature 1: Limited Lifetime Warranty
• Feature 2: Blades are finished the same as the housing and component parts.
• Feature 3: Constructed of cast aluminum and heavy stamped steel.
• Feature 4: A three-wire system is needed to operate the oscillation mechanism independent of the fan blades.
• Feature 5: Standard Equipment: 3-speed Decora style white wall control.
• Feature 6: Standard Equipment: Side-mounted wall junction box
• Feature 7: Remote control is possible. Please inquire for details.
• Feature 8: Damp location: All standard finishes. Not recommended for salt water/ocean front applications.
• Feature 9: Available in the following finishes: brushed nickel or textured bronze.
• Feature 10: N/A
• Shipping Weight: 16 lb

Location Rating: Damp

• Acceptable Applications: Interior/Exterior Damp
• 120V Safety Rating: ETL, CETL
• Safety Rating Number: 3171583
• Title 20: NA
• Title 24: No
• Prop 65: Yes

Control

• Included Control: Wall Control

Mounting

• Overal Height: 20"
• Included Downrod: N/A
• Downrod Diameter: N/A
• Optional Downrods: N/A

Blades

• Blade Finish: Textured Bronze
• Blade Material: Steel/ABS
• Blade Qty: 3 Blades
• Blade Pitch: 31 Degrees

Lights

• Lights Included: NO
• Lights Type: N/A
• Bulb Qty: N/A
• Light Watts: N/A
• CRI: N/A
• Lumens: N/A
• Color Temp: N/A
• Rated Life Hours: N/A
