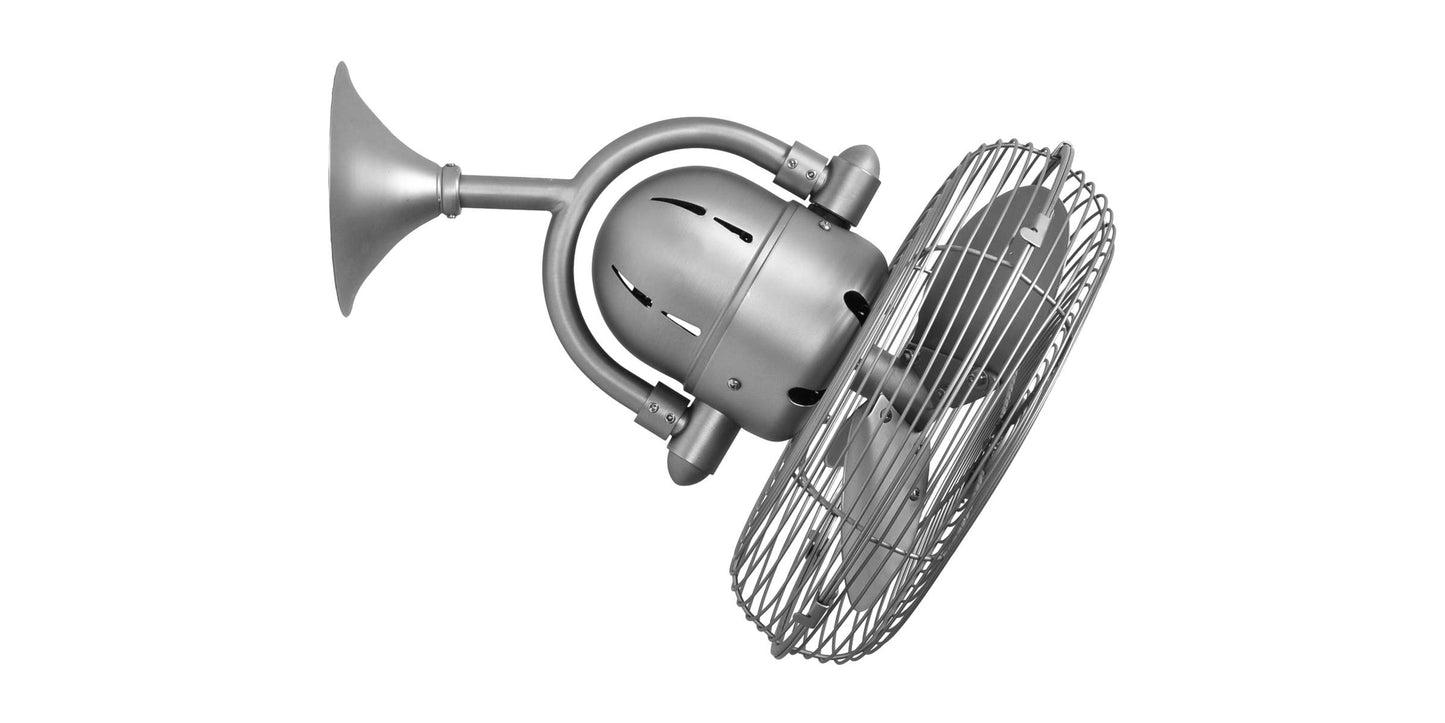

Atlas Kaye 13" Ceiling Fan in Brushed Nickel with Brushed Nickel Blades

Description

MPN: KC-BN

Atlas Kaye 90 degree oscillating 3-speed ceiling or wall fan in brushed nickel finish. The beautiful Kaye 3-speed versatile-mount, wall or ceiling fan, oscillates left to right, forward and reverse, in a 90 degree sweep. Its design is reminiscent of vintage train cabin ventilators of yester-year, and will cool down your favorite space with poise and determination. Kaye’s profile is low, however its strength and character define it. Kaye can be mounted in any small or awkward spaces or in front of HVAC ducts to improve the efficiency of the heating, ventilation or air conditioning of your favorite space. Constructed of cast aluminum and heavy stamped steel, the Kaye carries a limited lifetime warranty.

Performance

• Wind Speed Factor: 6.15 MPH
• RPM Low: 1213
• RPM High: 1495
• CFM Low: 868
• CFM High: 1302.65
• CFM/Watt High: 29
• Watts High: 47.68
• Amps High: 0.5
• Speeds: 3-Speed
• Motor Type: AC Motor

Product Features

• Feature 1: Limited Lifetime Warranty
• Feature 2: Blades are finished the same as the housing and component parts.
• Feature 3: Constructed of cast aluminum and heavy stamped steel.
• Feature 4: A three-wire system is needed to operate the oscillation mechanism independent of the fan blades.
• Feature 5: Standard Equipment: 3-speed Decora style white wall control.
• Feature 6: Standard Equipment: Side-mounted wall junction box
• Feature 7: Remote control is possible. Please inquire for details.
• Feature 8: Damp location: All standard finishes. Not recommended for salt water/ocean front applications.
• Feature 9: Available in the following finishes: Brushed Nickel, Matte Black, Gloss White, Polished Chrome and Textured Bronze.
• Feature 10: N/A
• Shipping Weight: 15 lb

Location Rating: Damp

• Acceptable Applications: Interior/Exterior Damp
• 120V Safety Rating: ETL, CETL
• Safety Rating Number: 3171583
• Title 20: N/A
• Title 24: No
• Prop 65: Yes

Control

• Included Control: Wall Control

Mounting

• Overal Height: 13"
• Included Downrod: N/A
• Downrod Diameter: N/A
• Optional Downrods: N/A

Blades

• Blade Finish: Brushed Nickel
• Blade Material: Steel/ABS
• Blade Qty: 3 Blades
• Blade Pitch: 31 Degrees

Lights

• Lights Included: NO
• Lights Type: N/A
• Bulb Qty: N/A
• Light Watts: N/A
• CRI: N/A
• Lumens: N/A
• Color Temp: N/A
• Rated Life Hours: N/A
