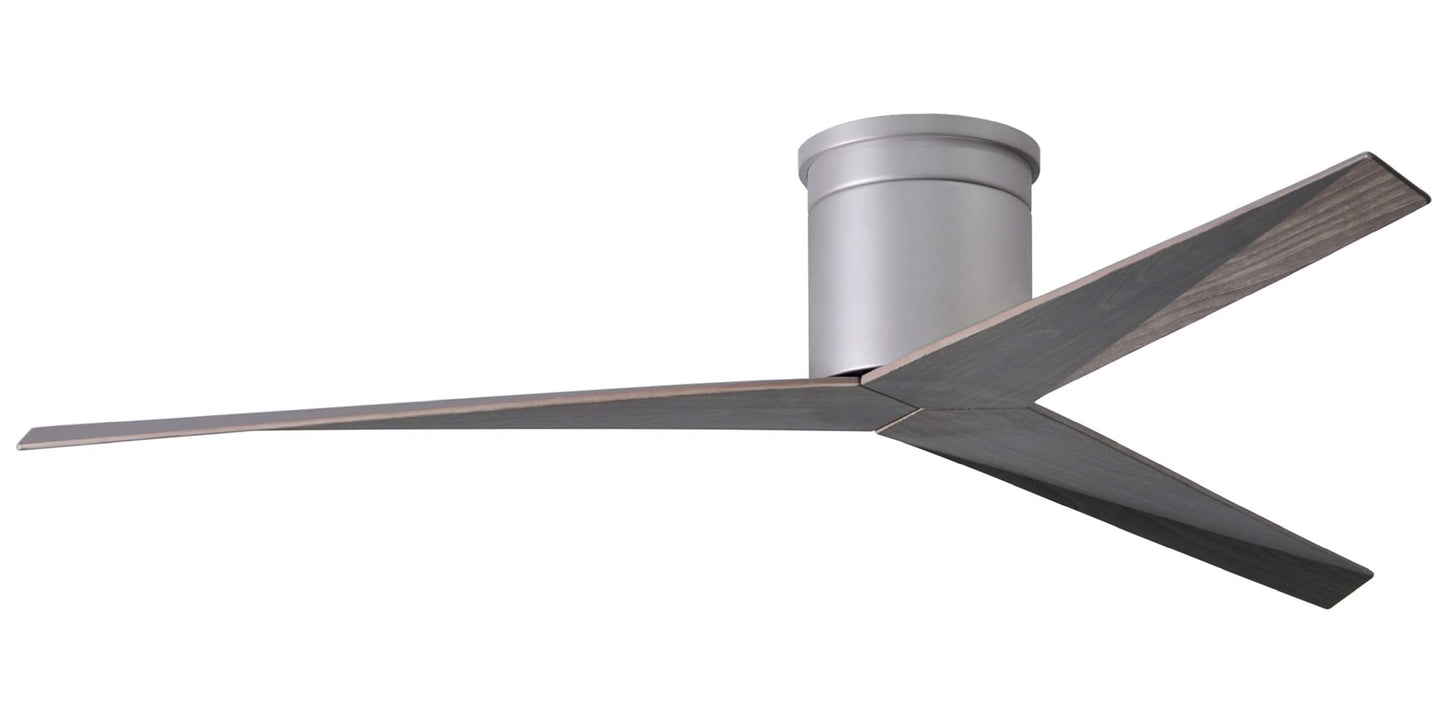

Atlas Eliza 56" Ceiling Fan in Brushed Nickel with Old Oak Tone Blades

Description

MPN: EKH-BN-OO

Atlas Eliza-H 3-blade ceiling mount paddle fan in Brushed Nickel finish with old oak ABS blades. Designed by Chicago architect Stephen Katz in 2014, the Eliza–H ceiling-mount fan blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is Eliza–H’s stationary visual statement which combines modern utility with minimalist geometry. Constructed of cast aluminum and heavy stamped steel, the Eliza–H has a limited lifetime warranty.

Performance

• Wind Speed Factor: 2.05 MPH
• RPM Low: 52
• RPM High: 175
• CFM Low: 1123.2
• CFM High: 4033.59
• CFM/Watt High: 122
• Watts High: 33.49
• Amps High: 0.5
• Speeds: 6-Speed
• Motor Type: Super Efficient DC Motor

Product Features

• Feature 1: Limited Lifetime Warranty
• Feature 2: 56" diameter with 7 blade finish options: Brushed Nickel, Gloss White, Matte Black, Walnut, Gray Ash, Barnwood or Old Oak
• Feature 3: Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.
• Feature 4: Motor finishes: Brushed Nickel, Matte Black or Gloss White.
• Feature 5: Constructed of cast aluminum and heavy stamped steel
• Feature 6: Standard Equipment: One six speed hand-held and one six speed decora style, white wall mounted control. Both controls reverse direction of fan.
• Feature 7: ABS All weather sysem protected blades finished in Gloss White, Brushed Nickel, Matte Black, Walnut tone, Gray Ash tone, Barn Wood tone or Old Oak tone
• Feature 8: Damp location. Not recommended for salt water/ocean front applications.
• Feature 9: Inobtrusive, direct ceiling mount design.
• Feature 10: N/A
• Shipping Weight: 15 lb

Location Rating: Damp

• Acceptable Applications: Interior/Exterior Damp
• 120V Safety Rating: ETL, CETL
• Safety Rating Number: 3129198
• Title 20: Yes
• Title 24: No
• Prop 65: Yes

Control

• Included Control: Remote Control, Wall Control

Mounting

• Overal Height: 10"
• Included Downrod: N/A
• Downrod Diameter: N/A
• Optional Downrods: N/A

Blades

• Blade Finish: Old Oak Tone
• Blade Material: ABS
• Blade Qty: 3 Blades
• Blade Pitch: 27 Degrees

Lights

• Lights Included: NO
• Lights Type: N/A
• Bulb Qty: N/A
• Light Watts: N/A
• CRI: N/A
• Lumens: N/A
• Color Temp: N/A
• Rated Life Hours: N/A
