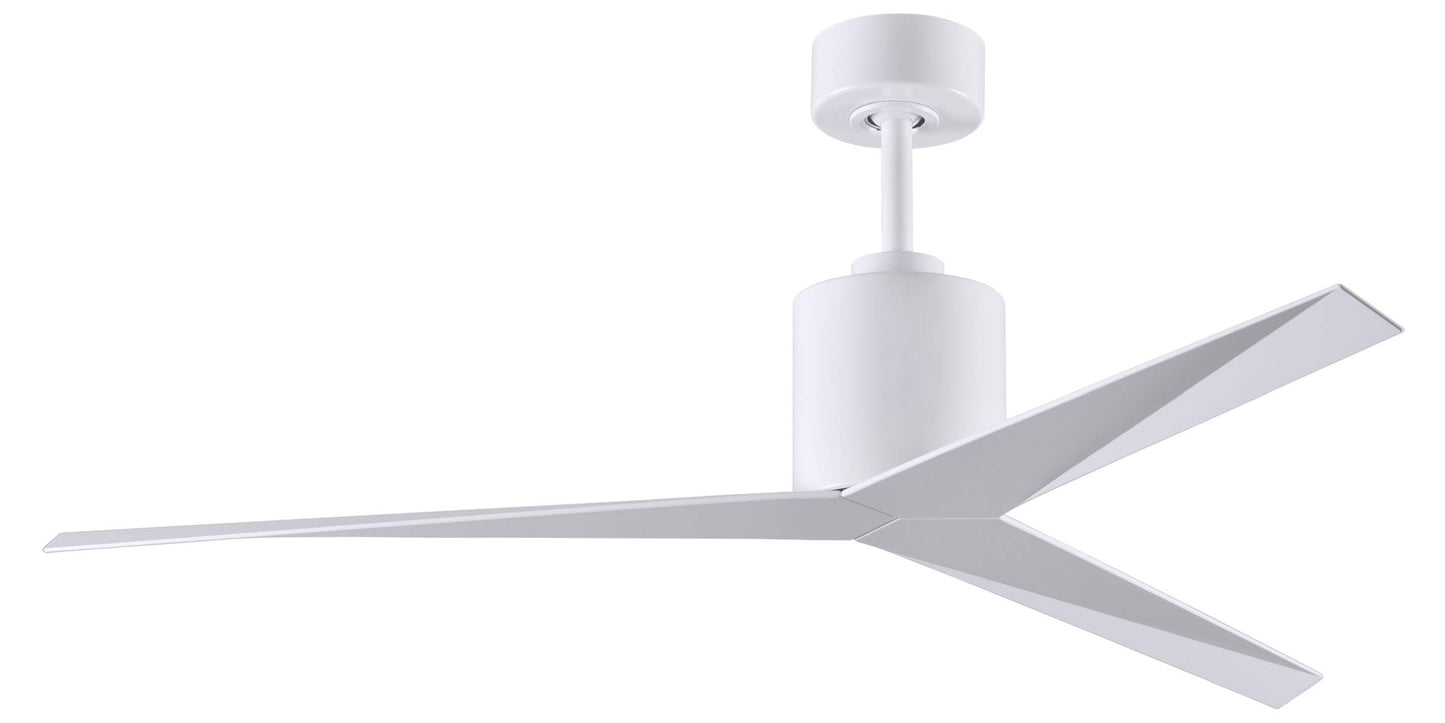

Atlas Eliza 56" Ceiling Fan in Gloss White with Gloss White Blades
Atlas Eliza 56" Ceiling Fan in Gloss White with Gloss White Blades
Description
MPN: EK-WH-WH
Atlas Eliza 3-blade paddle fan in Gloss White finish with gloss white all-weather ABS blades. Optimized for wet locations. Designed by Chicago architect Stephen Katz in 2013, the wet location Eliza blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is Eliza’s stationary visual statement which combines modern utility with minimalist geometry. Constructed of cast aluminum and heavy stamped steel, the Eliza has a limited lifetime warranty.
Performance
- Wind Speed Factor: 2.77 MPH
- RPM Low: 52
- RPM High: 172
- CFM Low: 1633
- CFM High: 5438.53
- CFM/Watt High: 167
- Watts High: 33.13
- Amps High: 0.5
- Speeds: 6-Speed
- Motor Type: Super Efficient DC Motor
Product Features
- Feature 1: Limited Lifetime Warranty
- Feature 2: 56" diameter with 7 blade finish options: Brushed Nickel, Gloss White, Matte Black, Walnut, Gray Ash, Barnwood or Old Oak
- Feature 3: Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.
- Feature 4: Motor finishes: Brushed Nickel, Matte Black or Gloss White.
- Feature 5: Constructed of cast aluminum and heavy stamped steel
- Feature 6: Standard equipment: - One downrod of 10" and can be mounted with any one of the following other downrod lengths: 5", 10", 20", 30", 48", 72"
- Feature 7: Standard Equipment: slant ceiling canopy mounting system for up to 29 degrees. Optional 60 degree cathedral canopy mounting system available.
- Feature 8: Standard Equipment: One six speed hand-held and one six speed decora style, white wall mounted control. Both controls reverse direction of fan.
- Feature 9: ABS All weather Sysem protected blades finished in Gloss White, Matte Black, Brushed Nickel, Walnut tone, Gray Ash tone, Barn Wood tone or Old Oak tone
- Feature 10: Wet location. Not recommended for salt water/ocean front applications.
- Shipping Weight: 17 lb
Location Rating: Wet
- Acceptable Applications: Interior, Exterior, Interior/Damp, Interior/Wet, Exterior/Damp or Exterior/Wet
- 120V Safety Rating: ETL, CETL
- Safety Rating Number: 3129198
- Title 20: Yes
- Title 24: No
- Prop 65: Yes
Control
- Included Control: Remote Control, Wall Control
Mounting
- Overal Height: 12" Plus Downrod
- Included Downrod: 10"
- Downrod Diameter: 1"
- Optional Downrods: 5", 10", 20", 30", 48", 72"
Blades
- Blade Finish: Gloss White
- Blade Material: ABS
- Blade Qty: 3 Blades
- Blade Pitch: 27 Degrees
Lights
- Lights Included: NO
- Lights Type: N/A
- Bulb Qty: N/A
- Light Watts: N/A
- CRI: N/A
- Lumens: N/A
- Color Temp: N/A
- Rated Life Hours: N/A
